Catalina Quad Lounger Shift

Previous
Next

With four corners of comfortable seating options, the Quad Lounge provides an open floor plan and plenty of space with central walking areas in the classic Catalina style. Enjoy two aft and two forward sunbathing lounges or side-by-side seating with the driver. The Catalina Quad Lounge is built with superior construction and great interior features.

Request Quote

• One of our Pontoon specialist or a local dealer near you will contact you to help configure the boat that matches your exact needs.
• Name*

  First

  Last
• Email*

• Phone*
• Zip Code*
• Price Range*15K – 25K25K – 50K50K – 75K75K – 100K100K – 150K150K – 200K
• Purchase Timeline*Next Few DaysNext Few MonthsIn a Year
• Briefly describe how you plan to use your boat, interest, etc.*
•
• PhoneThis field is for validation purposes and should be left unchanged.

Request Quote


Watch Model Overview

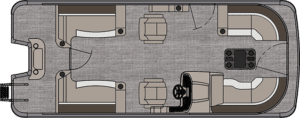

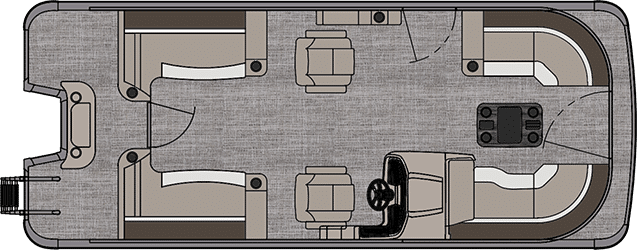

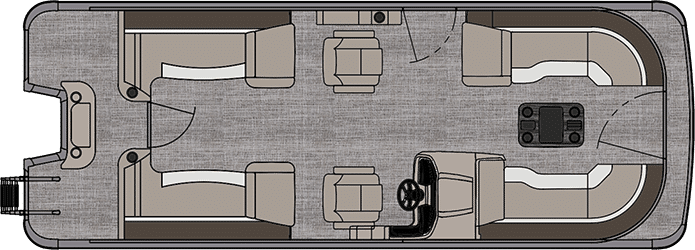

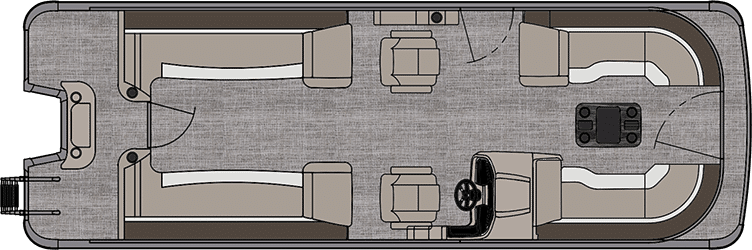

Floor Plans

Quad Lounger

Quad Lounger floor plans contain port & starboard benches in both the bow and aft portions of the boat. In addition to the captain’s chair there is also a port side chair.

Build Your Boat



21 FT





23 FT





25 FT



Features & Specs

Helm

• Ensign II Fiberglass helmstand with soft touch Black Recessed dash & Greywood Accents & Removeable Windshield
• Tach, Volt, Fuel Gauges
• GPS Speedometer
• Fusion RA-670 Stereo
• USB Input and Charge
• (4) Fusion XS Lit Speakers
• 12 Volt Power Point
• Steering – Mechanical Tilt
• Black Soft-grip Steering Wheel with Chrome Spokes
• Windshield
• Courtesy Light on Helmstand

Interior Features

• Commander Low Back Reclining Drivers Chair with Self-leveling Arms
• Chair Adjustment Slider, Front, Back, Rotate
• Interior Composite Wall Panels
• Full Deck Riptide Vinyl Flooring
• Table – Greywood Large Rectangle
• Exclusive Matrix 50 Soft Touch Seat Vinyl
• Suspension Seating
• Lounge Arms with Storage
• Lifetime Aluminum Seat Frames with Flow-Through Ventilation
• Decorative Bronze or Pewter Seat Frame Cladding
• (2) Moveable Cup Holders with Stainless Cup Holders
• Privacy Station Curtain and Frame (Not 21′)
• Vinyl Non-skid Strips for Entry Gates

Exterior Features

• Deco 3 External multi panel retro monochromatic walls
• Mirror Chrome Logos
• Gates with LIFT N LAY hinge
• Exterior Nav/Docklight Combo
• USCG Navigation Lights
• Rear Stainless Steel telescoping Ladder
• Bimini Top with 1 1/4″ Square Anodized Aluminum Frame SST Quick Release Bimini Mounts & Transport Position Brackets
• 4 Stainless U bolt & Cleat Combo

Hull

• 2 – 25″ DIAMETER PONTOONS
• Pontoon Double Full Risers
• Tapered Front Deck
• Extended Rear Deck
• Deck Corner impact protection – POLISHED
• 2″ Rub Rail with Black Rubber Insert

Fuel

• Fuel 25 Gallon Capacity Remote Fill Transom Mount
• SST Gas Cap & Vent

Specifications

AVAILABLE LENGTHS	21 FT	23 FT	25 FT
Boat Length Overall	21′ 5″	23′ 5″	25′ 5″
Deck Length	21′ 3″	23′ 3″	25′ 3″
Pontoon Diameter	25″	25″	25″
Width	8.5′	8.5′	8.5′
Dry Weight	1850	2,150	2,450
Max. Weight Cap.	2035	2,150	2,430
Max. People Lbs.	1,300	1,540	1,770
Max. # People	10	11	13
Max. Engine HP	115	125	135

Performance Packages

• Waveglider Max HP/Speed – Optional
• Sport 200 HP & Less – Optional
• Express 115 HP & Less – Optional
